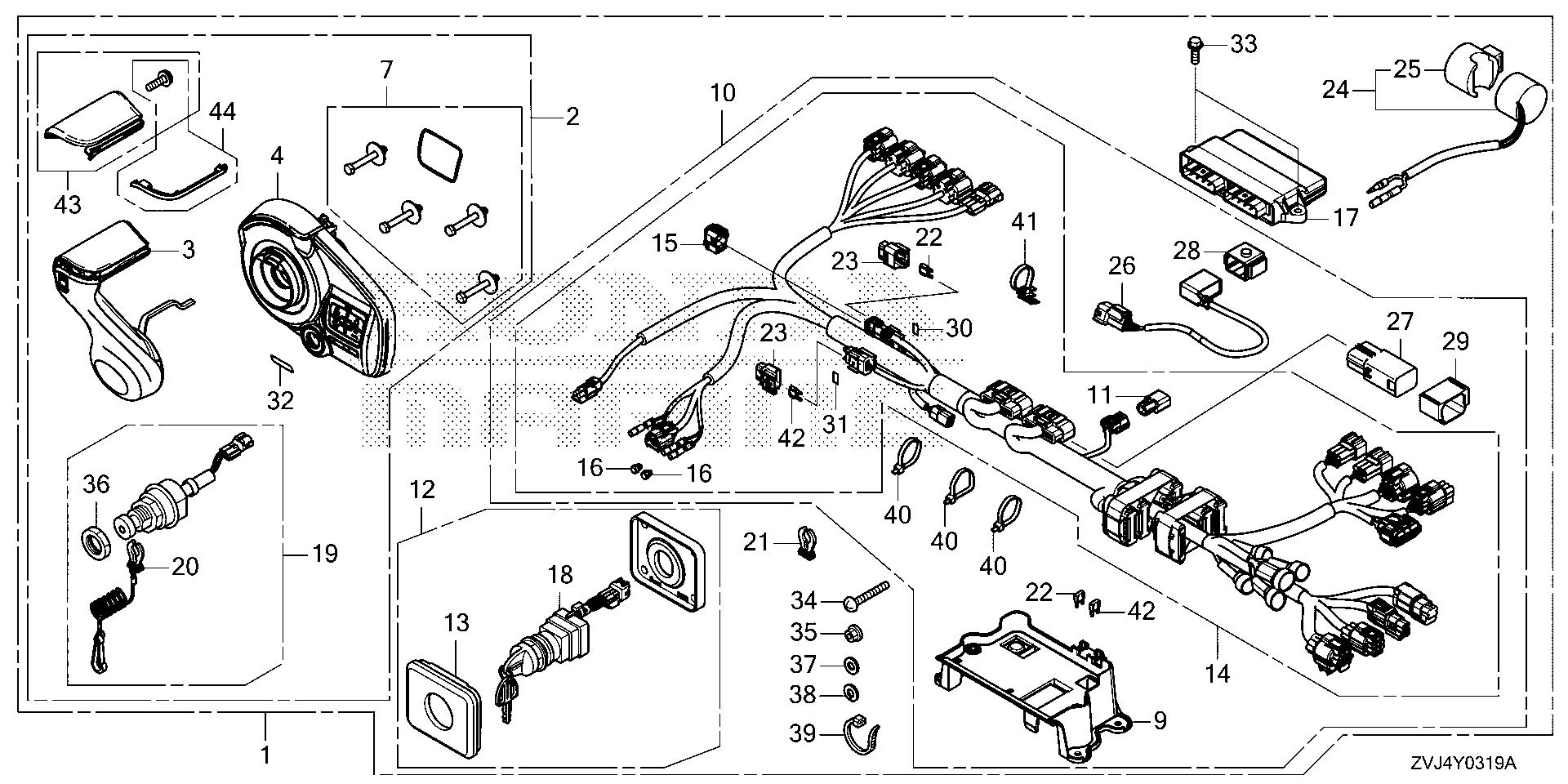

Mid - Large Outboard Engines (25 - 250hp) BF BF200 BF200DK1 XCDA BBRJ-8100001-9999999 REMOTE CONTROL (FLUSH MOUNT TYPE) (MAIN) - Tele-Lite, Inc.

  1. Product Lines
  2. Mid - Large Outboard Engines (25 - 250hp)
  3. BF
  4. BF200
  5. BF200DK1 XCDA BBRJ-8100001-9999999
  6. REMOTE CONTROL (FLUSH MOUNT TYPE) (MAIN)

WARNING: California Prop 65 Information

Ref No
Part Number
Description
Serial Range
Qty
Price
Ref No
1
Part Number
 06240-ZVP-C01
Description
 BOX KIT, REMOTE CONTROL (FLUSH MOUNT)(MAIN)
Serial Range
 1000001 - 9999999
Ref No
1
Part Number
 06240-ZVP-U01
Description
 BOX KIT, REMOTE CONTROL (FLUSH MOUNT)(MAIN)
Serial Range
 1000001 - 9999999
Ref No
2
Part Number
 24800-ZVP-C01
Description
 BOX ASSY., REMOTE CONTROL (FLUSH MOUNT)(RH)
Serial Range
 1000001 - 9999999
Ref No
2
Part Number
 24800-ZVP-U01
Description
 BOX ASSY., REMOTE CONTROL (FLUSH MOUNT)(RH) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
3
Part Number
 24810-ZVP-C01
Description
 HEAD, CONTROL (F)
Serial Range
 1000001 - 9999999
Qty
Price
 $1,429.90
Ref No
4
Part Number
 24811-ZVP-C01
Description
 COVER, BODY
Serial Range
 1000001 - 9999999
Qty
Price
 $16.84
Ref No
7
Part Number
 24840-ZVP-C01
Description
 PARTS SET, MOUNTING
Serial Range
 1000001 - 9999999
Qty
Price
 $7.30
Ref No
9
Part Number
 30420-ZVP-000
Description
 CASE, CONTROL UNIT
Serial Range
 1000001 - 9999999
Qty
Price
 $31.12
Ref No
10
Part Number
 30430-ZVP-C00
Description
 CASE ASSY., CONTROL UNIT (FLUSH MOUNT)(MAIN)
Serial Range
 1000001 - 9999999
Qty
Price
 $1,208.50
Ref No
11
Part Number
 32107-ZVL-003
Description
 TERMINATOR ASSY.
Serial Range
 1000001 - 9999999
Qty
Price
 $13.72
Ref No
12
Part Number
 32380-ZVP-C01
Description
 PANEL ASSY., KEY SWITCH (FLUSH MOUNT)
Serial Range
 1000001 - 9999999
Qty
Price
 $117.48
Ref No
13
Part Number
 32386-ZVP-C01
Description
 PANEL, KEY SWITCH (FLUSH MOUNT)
Serial Range
 1000001 - 9999999
Qty
Price
 $21.22
Ref No
14
Part Number
 32530-ZVP-C00
Description
 CABLE ASSY., REMOTE CONTROL (FLUSH MOUNT)(MAIN)
Serial Range
 1000001 - 9999999
Qty
Price
 $1,451.12
Ref No
15
Part Number
 32606-K44-V01
Description
 CAP, DUMMY (WPC 4P 090 M) (RED)
Serial Range
 1000001 - 9999999
Qty
Price
 $8.44
Ref No
16
Part Number
 32823-ZV5-003
Description
 PLUG, CONNECTOR (INNER)
Serial Range
 1000001 - 9999999
Qty
Price
 $3.86
Ref No
17
Part Number
 34330-ZVP-013
Description
 CONTROL UNIT
Serial Range
 1000001 - 9999999
Qty
Price
 $860.36
Ref No
18
Part Number
 35100-ZVP-003
Description
 SWITCH ASSY., COMBINATION
Serial Range
 1000001 - 9999999
Qty
Price
 $68.76
Ref No
19
Part Number
 36180-ZVP-003
Description
 SWITCH ASSY., EMERGENCY STOP
Serial Range
 1000001 - 9999999
Qty
Price
 $67.06
Ref No
20
Part Number
 36182-ZY6-003
Description
 WIRE, EMERGENCY
Serial Range
 1000001 - 9999999
Qty
Price
 $22.98
Ref No
21
Part Number
 36187-ZY6-003
Description
 CLIP, EMERGENCY LOCK
Serial Range
 1000001 - 9999999
Qty
Price
 $5.54
Ref No
22
Part Number
 38206-V15-003
Description
 FUSE, BLADE (3A)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.32
Ref No
23
Part Number
 38216-Z2E-003
Description
 COVER ASSY., FUSE
Serial Range
 1000001 - 9999999
Qty
Price
 $7.58
Ref No
24
Part Number
 38400-ZY9-A00
Description
 BUZZER ASSY., WARNING
Serial Range
 1000001 - 9999999
Qty
Price
 $92.18
Ref No
25
Part Number
 38402-ZY9-A00
Description
 SUSPENSION, WARNING BUZZER
Serial Range
 1000001 - 9999999
Qty
Price
 $28.30
Ref No
26
Part Number
 38580-ZY6-V11
Description
 RELAY ASSY., CONTROL
Serial Range
 1000001 - 9999999
Qty
Price
 $70.16
Ref No
27
Part Number
 38580-ZZ3-003
Description
 RELAY ASSY., MAIN
Serial Range
 1000001 - 9999999
Qty
Price
 $55.44
Ref No
28
Part Number
 38581-ZY6-V11
Description
 HOLDER, RELAY
Serial Range
 1000001 - 9999999
Qty
Price
 $4.92
Ref No
29
Part Number
 38585-MKE-A11
Description
 CUSHION, RELAY
Serial Range
 1000001 - 9999999
Qty
Price
 $6.54
Ref No
30
Part Number
 87117-Z2E-000
Description
 LABEL, FUSE (3A)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.18
Ref No
31
Part Number
 87118-ZVL-000
Description
 LABEL, FUSE (5A)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.04
Ref No
32
Part Number
 87702-ZVP-C00
Description
 MARK, EMERGENCY STOP (E)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.42
Ref No
32
Part Number
 87702-ZVP-U00
Description
 MARK, EMERGENCY STOP (EU) (NOT AVAILABLE)
Serial Range
 1000001 - 9999999
Ref No
33
Part Number
 90018-ZZ5-M01
Description
 BOLT, FLANGE (6X20)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.80
Ref No
34
Part Number
 90109-ZW5-000
Description
 SCREW, PAN (5X40)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.58
Ref No
35
Part Number
 90301-ZZ5-M01
Description
 NUT, FLANGE (5MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.18
Ref No
36
Part Number
 90302-ZY6-003
Description
 NUT
Serial Range
 1000001 - 9999999
Qty
Price
 $3.52
Ref No
37
Part Number
 90501-ZZ5-M01
Description
 WASHER, PLAIN (5MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $2.08
Ref No
38
Part Number
 90502-ZZ5-M01
Description
 WASHER, SPRING (5MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.96
Ref No
39
Part Number
 90650-KV6-003
Description
 BAND, WIRE (95MM)
Serial Range
 1000001 - 9999999
Qty
Price
 $4.12
Ref No
40
Part Number
 91058-MG9-681
Description
 BAND, SELF-LOCK
Serial Range
 1000001 - 9999999
Qty
Price
 $2.66
Ref No
41
Part Number
 91531-SR3-003
Description
 HOLDER, CONNECTOR (128.6MM) (NATURAL)
Serial Range
 1000001 - 9999999
Qty
Price
 $7.14
Ref No
42
Part Number
 98200-40500
Description
 FUSE, MINI (5A)
Serial Range
 1000001 - 9999999
Qty
Price
 $1.48
Ref No
43
Part Number
 24850-ZVP-C01
Description
 GRIP ASSY. (F)
Serial Range
 1000001 - 9999999
Qty
Price
 $38.02
Ref No
44
Part Number
 24860-ZVP-C01
Description
 PLATE ASSY., GRIP (S)
Serial Range
 1000001 - 9999999
Qty
Price
 $59.10
